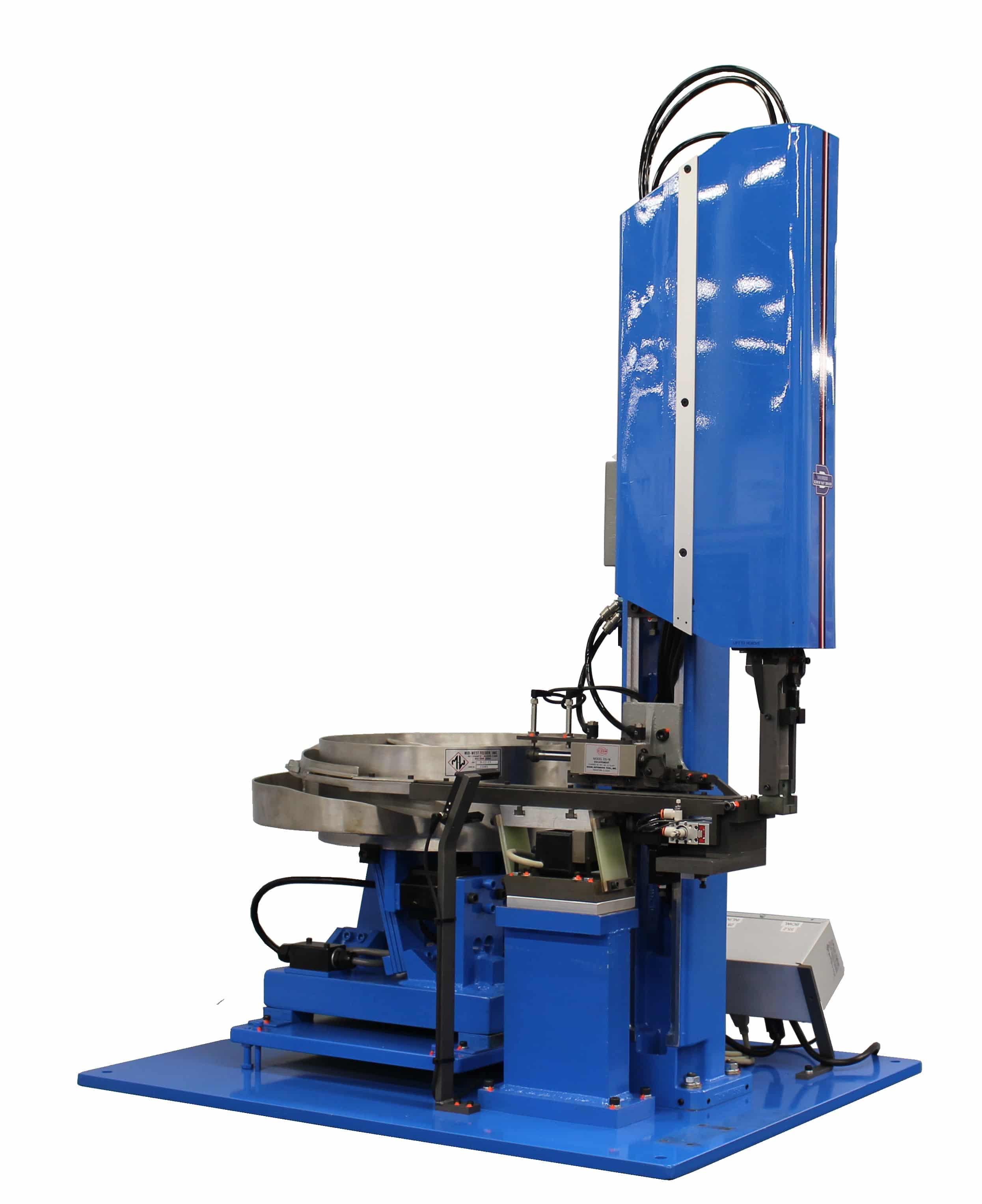

SD-111 Nut-Runner with Vibratory Feeder Bowl/Horizontal Track

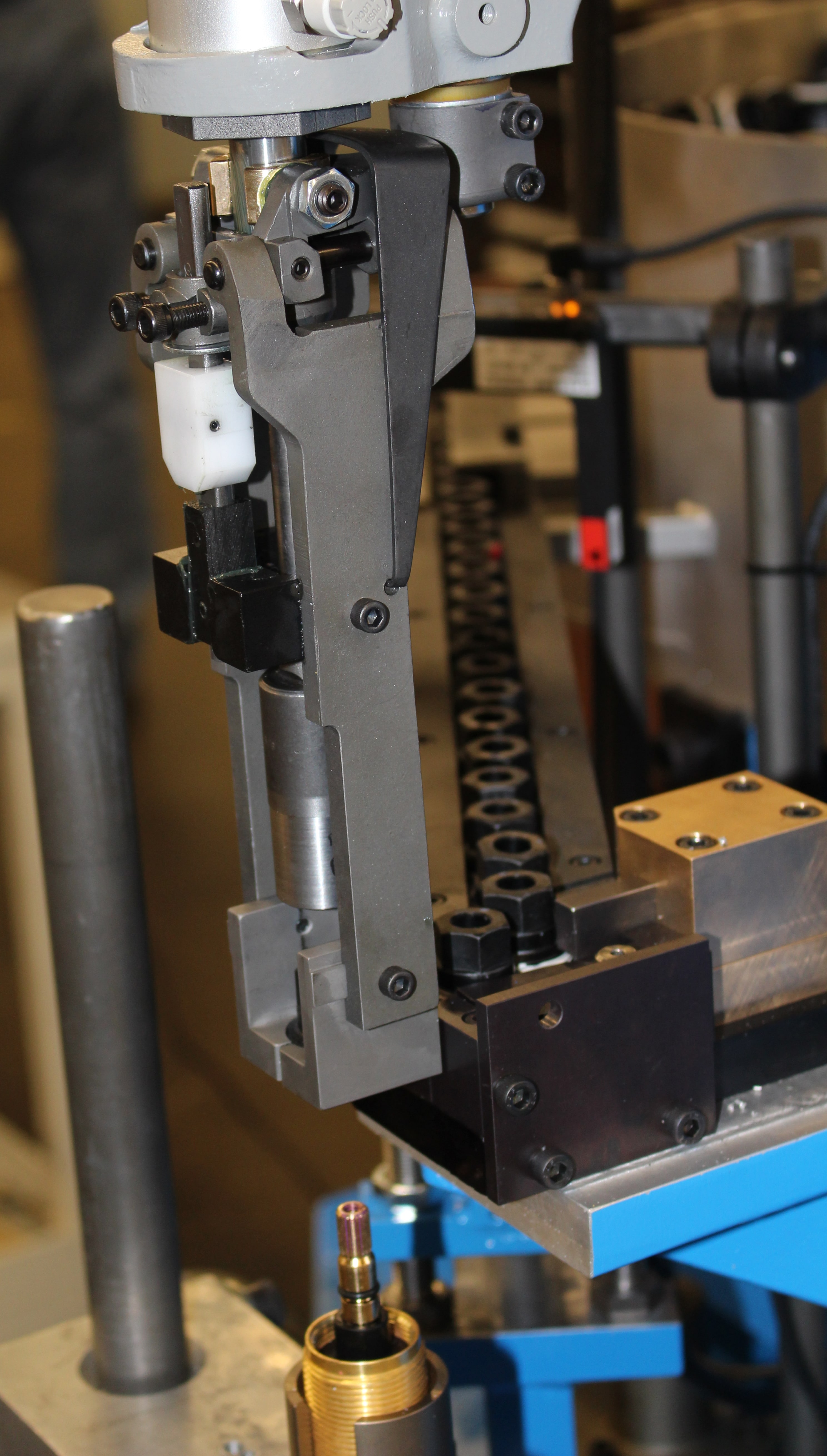

Fully automatic and equipped with a vibratory bowl feeder, a horizontal hardened vibratory feed track, support column, and transfer escapement that places each fastener into the screwdriver head’s placement jaws. The placement jaws hold the fastener’s threads in position until the fastener is engaged in the workpiece. The screwdriver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The baseplate size is determined by the size of the bowl feeder. This model is ideally suited for automated assembly systems.
Product Specifications | |
Shank Diameter | 2.2 mm – 19.1 mm (#2 – 3/4 in.) |
Shank Lengths | Max 101.6 mm (4.0 in.) |
Head Diameter | Max 25.4 mm (1.0 in.) |
Disc Shaped Parts | Max 64 mm dia. (2.5 in. dia.) |
Feed System Information | |
Feed System | Vibratory Feeder Bowl |
Bowl Size | 228.6 mm – 914.4 mm (9 – 36 in.) |
Track | Vibratory Inline |
Escapement | Transfer Escapement |
Contains all options from base head | |
100 Series Screw/Nut Driving Head |
